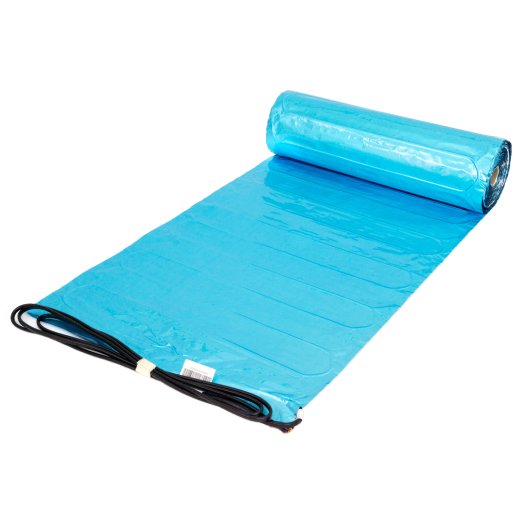

Electric underfloor heating for floating floor coverings
The extremely thin Mi-Heat two-wire heating mat can be used as a comfort heating system in conjunction with an already installed heating system, as well as a direct heating system. Regardless of the application, the Mi-Heat two-core heating mat creates a comfortably heated floor. The system is laid as a floating floor. The aluminium-coated textile fabric provides even heat distribution and is therefore used under laminate and parquet flooring. The Mi-Heat heating mat can be used in living rooms, basements, party rooms, caravans, motor homes, boats or yachts. The installation height of just 1.6 mm is suitable even for rooms with a low installation height.
The Mi-Heat two-wire heating mat consists of a shielded two-wire heating cable, which is attached to an aluminium-coated textile fabric. The electrical connection of such a system is made via a so-called "cold end", which is connected to the heating cable by a reliable, long-tested connection technique. In contrast to the single-core system, the power supply of the two-core system comes from only one end of the heating circuit. There is no need to return the second connection cable.
Properties
-best solution for rooms with limited installation height
-cost- and energy-saving
-proven durability
-simple installation
Technical data
Operating voltage: 230VAC
Max. Power consumption: 100Watt/m²
Max. Operating temperature: 80°C
Min. operating temperature: -10°C
Heating mat width: 50cm
IP protection class: IPX7
Cable diameter: 1,4mm
Length of connecting cable: 3.8m
Protective measure: FI circuit breaker 30mA
Note!
The Mi-Heat ALU heating mats must be operated with a temperature controller which is equipped with a temperature limiter of +30°C. The Mi-Heat ALU heating mat is maintenance-free and not suitable for damp rooms.
