Electric Underfloor Heating
Heating film, or heating foil, also referred to as carbon heating film, is a high-quality infrared heating product used in modern underfloor heating, like floating floors, laminate, carpet or parquet. The infrared heating consumes 30% less electric energy than electric heating and over 50% less energy than conventional heating systems like oil boiler.
Compared to other electric heating systems, the energy from heating film converts into infrared rays without any energy waste. It consists of two copper strips, which works as the electrical power conductor. Due to its parallel structure our heating film lets you to heat the whole house efficiently and evenly.
Our heating film not only provides cozy warmth, prevents germ or mold growth, but also its healthy infrared ray is a gentle boost for your immune system. It is perfect for rooms with children, senior citizens and patients.
Features
- Easy Do It Yourself Install
- Use highly-efficient conductive ink technology
- Consumes up to 50% less energy than traditional heating systems
- Compatible with many floor materials
- Extremely thin & durable
- Disperses an evenly consistent heat
- Low warm-up time
Specifications
Operating voltage: 220-240 volts
Max. power consumption: 100Watt
Material: Carbon Fiber
Film width: 50cm
Active heating area: 46cm
Heating area per m²: 74%
IR wavelength: 7-14 micrometer
Temperature resistance: up to 80 ° C
Efficiency: 98%
Max. film length: 12 meters one roll
Length cuttable: Yes, every 25cm
Material thickness: 0.366 mm
Insulation: 2-ply, 1-fold insulated
Application: floating floors, laminate, carpet or parquet

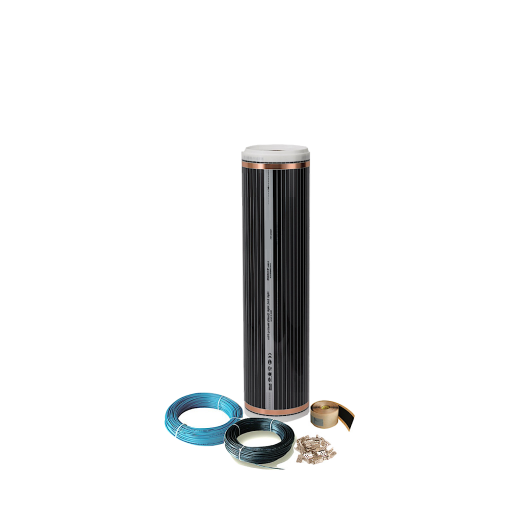

Kit contents
1x 4m heating film
2x assembly set (one set consists of 2x 2,5m connecting cables brown and blue, 2x crimp connectors, 30cm vulcanizing tape)
Reference
Refer to floor manufacturer's specifications for compatibility of our heating film to your floor type or contact us at support@infrarot-fussboden.de before installation.
Please refer to a qualified electrician for the installation of electrical heating system. For safe installation a 30mA RCD(residual current device) is required
Please connect the heater to a thermostat with a junction box.
