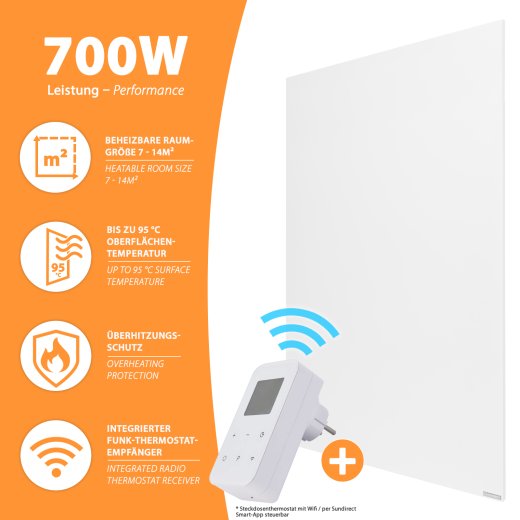

Frameless infrared heating IC-700 Plus including wireless socket thermostat Smart Plug WiFi.
The IC-700Plus is a premium version of the infrared heating panels. The powder-coated white metal surface and smooth corners provide an elegant design that perfectly fits into any room interior.
The panel has a built-in radio receiver. This allows, by means of optional wireless thermostat the Smart1.0, Smart1.0 Pro WiFi or the flexible-use WLAN socket thermostat (Smart Plug), complete wireless control and monitoring of the entire heating system in a room. This type of control facilitates installation and allows it to be placed in almost any location.
Optionally, when using the above thermostats, heating control is ensured via connection to Tuya, Sundirect, Google Home or Alexa.
The special panel design ensures even heat distribution over the entire surface, all the way to the edges. This makes it one of the most efficient frameless panels on the market. This infrared heater has a heating element made of silicon, which has a heat resistance of up to 200 ° C, resulting in increased durability. The heating element is highly insulated, which makes it very safe. IC series infrared heating panel is insulated with three layers of high temperature glass fiber to minimize heat loss on the back side. The polished steel reflector optimizes the heating performance by reflecting the infrared rays forward. The layers of this infrared heater are riveted together for maximum safety. The IC-Plus series has an IP44 rating and is suitable for use in damp locations.
Technical data IC-700 Plus
Operating voltage: 220-240V, 50Hz
Max. Power consumption: 700 Watt
Size: 62x98cm
Heated room size: 7-14m²
Weight: 13,8Kg
Installation: wall/ceiling
Surface temperature: 85-95°C
Energy efficiency: up to 95%
Protection class: IP44
Heating element: silicon heating element
Insulation: high temperature fiberglass material
Reflective layer: polished steel reflector
Overheating protection sensors: 3x
Plug: 1.7m with Schuko plug ( Type F)
Thermostat features
- Touch Display
- WiFi control
- 7 days programming for each day
- Compatible with Alexa, Google Home,
- Works with the Tuya and SunDirect app
- Energy Saving
- Holiday mode, Smart mode, Manual mode.
- No installation required
- Elegant design
Technical data thermostat
Mounting type: socket
Operating voltage: 220-240V, 50Hz
Type: Schuko/Switzerland
Frequency: 433Mhz
Control: 433Mhz RF control from the Smart Plug to the heaters; WLAN controllable via Sundirect Smart at the Smart Plug
Operating temperature: 5-37°C
Dimensions: 118mm*65mm
Control distance: 35m in unobstructed environment
Communicating models: PE-Plus/IC-Plus/GD-Plus/MD-Plus
Scope of delivery
1x infrared heater 62x98x4cm / with ceiling -/wall mount 62x98x5cm
1x mounting accessories
1x German operating instructions
1x ceiling/wall mount
1x wireless socket thermostat Smart Plug WiFi
Optional accessories
Digital Thermostat Smart1.0
Smart Thermostat Smart1.0 Pro
Please note - EU Ecodesign Directive 2015/1188
The installation and commissioning of infrared heating is permitted from 1.1.2018 only in conjunction with external thermostats, which have an electronic room temperature control and a weekday control and adaptive control of the start of heating or detection of open windows.
| Shipping weight: |
16,10 kg
|
Product safety information
| Manufacturer information: |
Sundirect Technology Ltd.
Xingsun Road No.3
Hangzhou, China, 311261
info@sundirect-heater.com
https://www.sundirect-heater.com |
| Responsible person: |
Mi-Heat Heizsysteme GmbH
Ol Streek 39a
Aurich, Deutschland, 26607
info@infrarot-fussboden.de
https://infrarot-fussboden.de |
