WarmUp StickyMat thin-bed heating mat SPM 150Watt/m² for tiles and natural stone floors
The WarmUp StickyMat offers an outstanding solution for new builds and existing properties to ensure fast and even floor heating. This heating solution is not only easy to install, but also extremely versatile. It is perfect for various floor coverings such as tiles, granite and natural stone. Due to its low profile, it can be seamlessly integrated into thin tile adhesive, making it ideal for any type of space, whether it is new build or older Buildings.

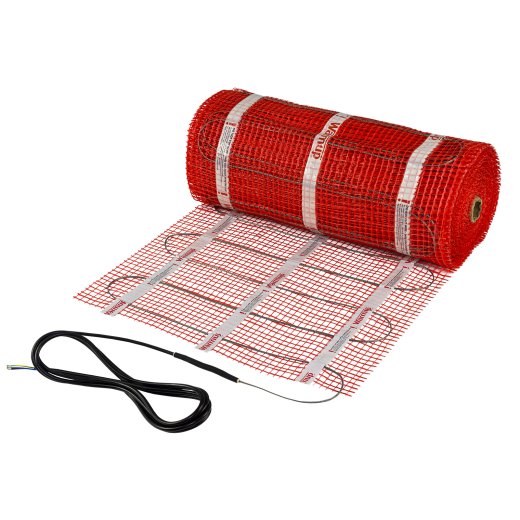

The mat consists of a heating conductor that is only 1.8 mm thick, double insulated and coated with a robust fluoropolymer coating. This heating conductor is attached to a self-adhesive fiberglass fabric at intervals of around 8 cm. This allows the mat to be simply rolled out over the floor and repositioned as required without losing its adhesion.
The even heat emission over the entire floor surface creates an ideal room climate with minimal air and dust turbulence. By installing the heating mat directly under the floor covering, the room temperature can be regulated quickly and efficiently. This results in a pleasant and even heat distribution in the room, which significantly increases comfort.
In summary, the WarmUp StickyMat offers a flexible and efficient solution for underfloor heating in various applications and environments that is not only user-friendly, but also promotes a healthy and comfortable indoor Climate.
Note: Underfloor heating is the perfect solution for residential buildings that have undergone energy modernization or where rapid heating is required.
Installation:
Lay the heating mat directly in the leveling compound or in flexible adhesive for tiles.
The tiles can then be laid with tile adhesive
Heating mat properties:
- Dual fluoropolymer-coated twin heating conductor (temperature resistance in the range from -200 to approx. 260 °C)
- Robust self-adhesive fiberglass fabric for extra durability and strong hold.
- Confirmed quality (BEAB test mark, international certification)
- Ultra-thin 1.8 millimeter thick twin heating conductor
- Quick and easy Installation
- optimal solution for rooms with limited installation height
- Less electromagnetic radiation - thanks to twin Technology
- Low heat-up time
- Homogeneous heat distribution
Installation Methods:
- directly in the tile adhesive
- Self-leveling compound
- in stucco/mortar
- Anhydrite floors
Technical data heating mat:
Operating voltage: 230VAC
Max. Power consumption: 150Watt/m²
Max. Operating temperature: 80°C
Min. operating temperature: -10°C
Heating mat width: 50cm
Protection class: IPX7
Cable diameter: 1.8mm
Loop spacing: 8.0cm
Length of connecting cable: 3.0m
Protective measure: FI circuit breaker 30mA
Approval: BEAB
Scope of delivery
1x Warmup heating mat 1,5m²
1x installation instructions
Please note!
The WarmUp StickyMat must be operated with a temperature controller which is equipped with a temperature limiter of +30°C. The WarmUp StickyMat is maintenance-free.
