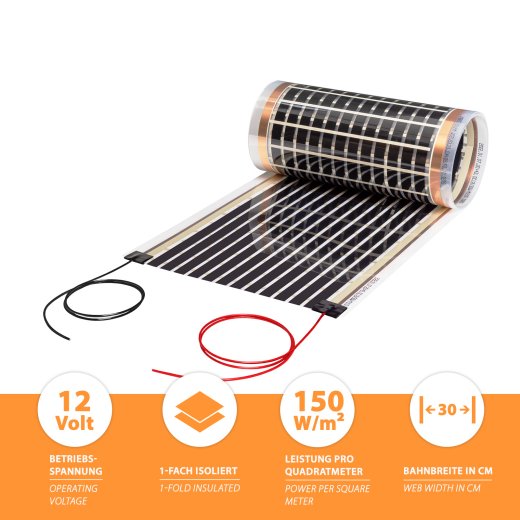

Mi-Heat carbon heating film 12V, 150W/m², 30cm wide
Our Mi-Heat carbon heating film with a construction height of only 0.366 mm is a very thin and light heat source, which is suitable for various applications. Due to the small width of only 30cm, the heating film is particularly versatile for the realisation of your own heating projects.
A heating power of 150W/m² (+/- 10%) ensures a fast and extremely even heat development. Compared to other electrical heating systems, the energy used is converted into heat with almost no losses, which makes the heating film particularly efficient. The thermal efficiency of our Mi-Heat carbon heating film is an outstanding 98%.
The generated and harmless infrared radiation directly heats the objects above it (e.g. the floor covering), whereby no air turbulence occurs. The offered heating film is intended for individual projects for warming, heating or tempering. For example, the Mi-Heat Caron heating film is used in the following projects:
- Floor heating under floating floor coverings
(also in damp rooms because of low voltage)
- temperature control for battery cases, motorhome batteries, lithium batteries in cars, etc.
- Antifreeze for service and waste water tanks in caravan / motor home
- Heating for terrariums, incubators, beehives
- Heating of propagation greenhouses, wintering of ornamental plants
- model construction, prototype construction
- Mould prevention
- and many other applications
Properties:
- low installation height and weight
- very high energy Efficiency
- simple, quick and safe Installation
- low acquisition costs
- flexible, robust and reliable
- homogeneous heat distribution
- long operating life
Technical data:
Operating voltage: 12 volts
Max. Power consumption: 150Watt/m² +/-10%.
Heating surface per m²: approx. 74
Web width: 30cm
Active area: 27cm
IR wavelength: 7-14 microns
Temperature resistant: up to 80°C
Efficiency: 98%.
Max. Web length: 3.5 meters in one piece
Shortenable: Yes, approx. every 2.5cm
Material thickness: 0,366 mm
Insulation: 2-ply, 1-ply insulated
Scope of delivery:
1m 12V heating foil with 2,5 meter connection cable fixed and ready for connection
Note!
Please note the required power supply! The installation of electrical heating systems may and must be carried out exclusively by a specialist according to VDE DIN 100.
Product safety information
| Manufacturer information: |
Mi-Heat Heizsysteme GmbH
Ol Streek 39a
Aurich, Deutschland, 26607
info@infrarot-fussboden.de
https://infrarot-fussboden.de |
