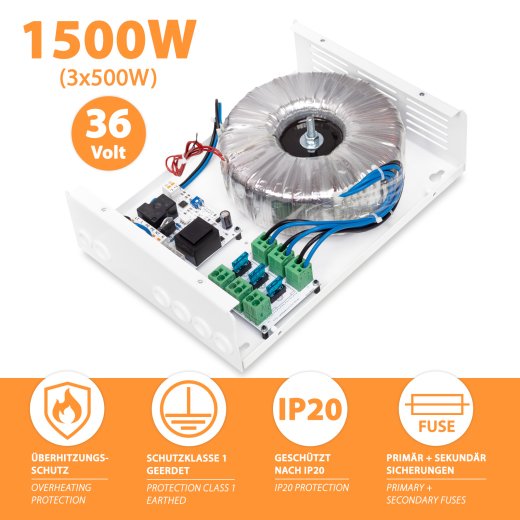

36V Mi-Heat transformer 1500W (3x 500W)

SKU: 904-007
Manufacturers: Mi-Heat

Power

€ 749,00

incl. 19% VAT ,

Available immediately
Delivery time: 2 - 3 days ** (DE - int. shipments may differ)

36V Mi-Heat Transformer 1500 Watt

The 36V safety transformer serves as a voltage source for Mi-Heat carbon heating foils or other consumers with 36V operating voltage.
The output power of the transformer consists of three individual channels with 500W each.

The transformer has extensive protective features: For example, there are fine-wire or blade fuses on the primary and secondary sides and a 105°C temperature switch in the toroidal core, which protects the transformer from overheating. In addition, the transformer is equipped with an inrush current limiter.

The transformer can be switched either via 230V mains voltage or via a potential-free switching contact. A corresponding circuit diagram can be found in the product illustrations and in the enclosed operating instructions.

The transformer is designed for stationary or horizontal mounting on the wall. The high-quality metal housing has numerous ventilation slots, which ensure sufficient ventilation and provide protection according to IP20. The transformer is manufactured in the EU and complies with the European standards EN61558-1, 2-6 and has a CE marking.

Note: The transformer should be selected so that approx. 10% of the output load remains as a reserve.

Features

Ring core safety transformer
Primary and secondary fuses, interchangeable
Short-circuit protection
Overheating protection at 105°C
Inrush current limiter
Metal housing with ventilation holes
Wall mounting or horizontal mounting possible

Technical data

Model: EP-1500-36-3.FC
Power: 1500W (3x 500W)
Input voltage: 230V / 50Hz
Input current: 6,52A
Output voltage: 36V~
Output current: 13.9A (3x)
Operating temperature range: +5 to +35°C
Protection class: IP20
Protection class: 1
Dimensions (LxWxH): 325x235x88mm
Weight: 12,1kg
Certification: CE

Scope of delivery

1x transformer with 1500 Watt
