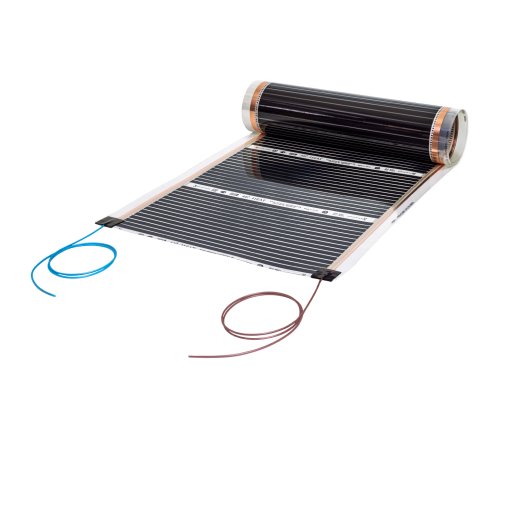

Comfort heating film 60watt/m² 50cm wide completely assembled 6.0m = 3.00m²

Comfort heating film 60watt/m² 50cm wide completely assembled 6.0m = 3.00m²

Length

€ 78,85

incl. 19% VAT , plus

Additional payment methods available in the shopping basket:

Available
Delivery time: 2 - 3 days ** (DE - int. shipments may differ)

SKU: 1234-011
Manufacturers: Mi-Heat

Electric floor heating

Heating foil, also called carbon heating foil, is the thinnest version of electric floor heating. It consists of two copper strips that supply an electrically conductive coating on a carrier material. Almost the entire surface within the heating foil heats up evenly, providing a pleasantly warm floor over the completely laid surface.

The infrared heating foil is well suited for cold floors and where a higher temperature is desired. This can be laid in the living room, bedroom, in front of the sofa or under the dining table.

The energy used is converted into infrared rays with almost no loss compared to other electric heating systems, which makes the infrared heating foil so efficient.
Without much construction effort, the electric floor heating system can be applied to the existing floor subfloor.

Structure:

Heating carpet pad depending on the floor covering (design vinyl 1.5mm, laminate or parquet 3mm or 5mm).
Comfort heating foil
Aqua-Stop PE foil
Floor covering (Please obtain a release from the manufacturer for underfloor heating).

Properties:

low installation height and weight, space-saving.
constant surface temperature
flexible, robust and reliable
homogeneous energy Distribution
low investment costs
low warm-up time
simple Installation
maintenance-free
long life

Technical data:
Operating voltage: 220-240 volts
Max. power consumption: 60 Watt/m² +/-10%
Heating surface per m²: 74
Web width: 50cm
Active area: 46cm
IR wavelength: 7-14 microns
Temperature resistance: up to 80°C
Efficiency: 98%.
Max. Web length: 12 meters in one piece
Shortenable: Yes, every 25cm
Material thickness: 0,366 mm
Insulation: 2-ply, 1-ply insulated

Scope of delivery:
6,0m Comfort heating foil with 2.5m ready-made connection cable
Assembly instruction

Note!
When using electric underfloor heating, a thermostat that allows an adjustable temperature limit of 26°C must be used for control.
When using electric heating elements, make sure that the surface covering has the appropriate thermal conductivity.
Manufacturer approval must be obtained in advance by the customer.
The installation of electrical heating systems may and must be carried out exclusively by a specialist in accordance with VDE DIN 100.
Heating foil power and its application:
Vinyl = 60-100 watts/m²
Laminate/parquet = 60 - 130 Watt/m²
Wall/ceiling and individual projects = 160 - 220 Watt/m².
