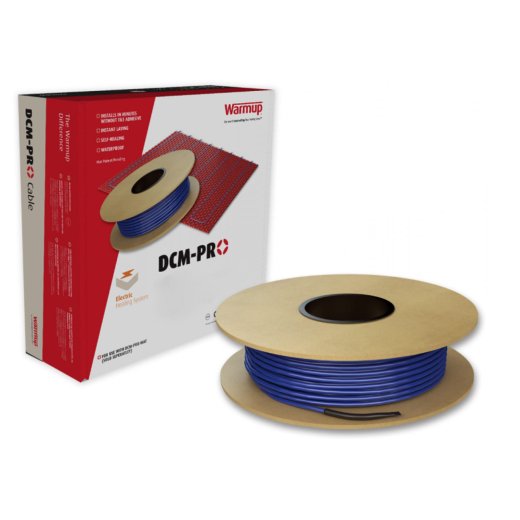

Warmup Heating Cable
The extremely high quality and only 4.5 mm flat heating cable of the DCM-PRO system is manufactured in modern twin technology, which enables the power supply from only one connection side. Earlier heating cables usually had to be connected to the mains on both sides, i.e. at the beginning and end of the cable.
The total power of the system can be completely adapted to individual needs. For this purpose, various lengths between 11 and 177 metres of the highly flexible twin heating cable are available, which is laid at a loop spacing of either 60, 90 or 120 mm. The installation is possible without any additional tools, because the DCM-PRO heating cable is simply pressed into the existing honeycomb structure of the decoupling mat. The heating output can thus be conveniently varied between 130 and 230 W/m².
Thanks to IPX7 certification and a protective conductor fabric inside the DCM-PRO heating cable, it is also possible to install it in damp rooms, such as the bathroom.
Features:
- 4.5mm thin heating conductor
- Twin Technology
- Highly flexible cable
- Double insulation
- Easy and quick installation
- Adjustable heat Output
- Suitable for humid rooms
Technical data:
Operating voltage: 230/240 volts
Max. Power consumption: 130-230 Watt/m² depending on loop distance
Heatable area: 9.3m² at 230W/m²; 11.7m² at 190W/m²; 14.0m² at 150W/m²; 16.3m² at 130W/m²
Cable length: 155.5 metres
Thickness: 4,5mm
Protection: IPX7
Insulation: 2-fold, fluoropolymer inside and PVC outside
Connection cable: 3 metres
Scope of delivery:
1x 155.5m DCM-PRO heating cable
1x instruction manual
Product safety information
| Manufacturer information: |
Warmup GmbH
Ottostraße 3
Wildeshausen, Deutschland, 27793
de@warmup.com
https://www.warmupdeutschland.de |
