Electric underfloor heating
Feel the comfort and say goodbye to your cold feet. Whether in a new build or an existing property, cold feet are a thing of the past thanks to Mi-Heat-Silver thin-bed heating mats. The easy-to-install heating system provides fast, even heating of the floor.
Heating mats are laid invisibly in the floor and controlled with an electronic thermostat. The system can be applied under any floor covering of your choice: Tile, marble or carpet. The large-area heat emission over the floor surface creates a healthy, comfortable room climate. Radiant heat is perceived by people as very pleasant and comfortable. The set room temperature is lower than with conventional heating systems while the heat sensation remains the same.

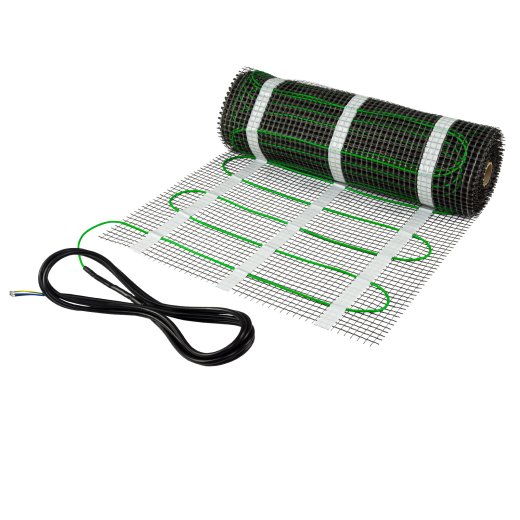

The Mi-Heat-Silver two-wire heating mat consists of a shielded two-wire heating cable fixed to a self-adhesive, flexible support mat. Thanks to the exact laying of the heating cable on the carrier material, no further adjustment or adaptation is necessary.
The electrical connection of such a system is made via a so-called "cold end", which is connected to the heating cable by a reliable, connection technique. In contrast to the single-wire system, the power supply of the two-wire system only comes from one end of the heating mat. This eliminates the need to return the second connection cable, which makes installation much easier.
Properties
- best solution for rooms with limited installation height
- proven durability
- self-adhesive heating mat, thanks to adhesive strips
- complete sheathing due to aluminium earth jacket
- PTFE(Teflon) insulation
- PVC protective jacket
- simple installation
Installation method
- directly in tile adhesive
- self-levelling casting mortar
- in stucco/mortar
- Anhydrite floors
Technical data
Operating voltage: 230VAC
Max. Power consumption: 200Watt/m²
Max. Operating temperature: 80°C
Min. operating temperature: -10°C
Heating mat width: 50cm
Protection class: IP67
Cable diameter: 4,2mm
Loop spacing: 6.5 - 7.5cm
Length of connecting cable: 3.90m
Protective measure: FI circuit breaker 30mA
Approval: VDE
Differences to competitor products
VDE tested, VDE is one of the largest technical-scientific inspection bodies in Europe
Scope of delivery
1x heating mat Mi-Heat Silver 10,0m²
1x German installation instructions
Note!
The Mi-Heat Silver heating mats must be operated with a temperature controller, which is equipped with a temperature limit of +30°C. The Mi-Heat Silver heating mat is maintenance-free.
