350W silicone heating pad 46x27cm with integrated temperature limiter
Our high temperature resistant silicone electric heating pads offer a reliable and versatile solution for a wide range of applications that require precise and fast heat application. Made from a soft but extremely robust silicone rubber, these heating mats are designed to withstand temperatures of up to 200°C, for example during processing, without any problems.
The heating pads are equipped with an integrated temperature limiter, which is set to 150°C on most models. One exception is the 30x24cm version, which has a 130°C temperature limiter. With a maximum heat output of up to 500W, depending on the model, these silicone heating pads enable a fast heat-up time and efficient heat dissipation, making them ideal for use in research and development. Here, for example, they are used to simulate special climatic conditions. The silicone heating mats are also widely used in industry. They are perfect for preheating materials, moulds or other industrial components. These robust heating mats are also valued in the catering industry for keeping food and equipment at the optimum temperature.
An outstanding feature of these heating pads is their extremely flat design with a height of just 0.8 mm, which makes them easy to install even where space is limited. Only the connection cable and the temperature limiter are up to 5.5 mm high. Thanks to a self-adhesive coating, the heating mat remains firmly in place even under difficult conditions. The adhesive used is heat-resistant up to 180°C and therefore guarantees a secure and permanent hold. With a minimum bending radius of 10 mm, the heating pads adapt flexibly to any contour, ensuring optimum heat transfer.
The dimensions of the heating mat are fixed, so customised cutting is unfortunately not possible.
Features:
- extra strong heat output - 350 watts
- thin construction - only 0.8 mm material thickness (max. 5.5 mm at the temperature limiter)
- particularly high flexibility - only 10mm bending radius required
- for permanent submersion - waterproof according to IP68 protection class
- Extremely robust - suitable for temperatures from -60°C to +200°C
Technical data:
Operating voltage: 230 Volt
Max. Power consumption: 350 watts

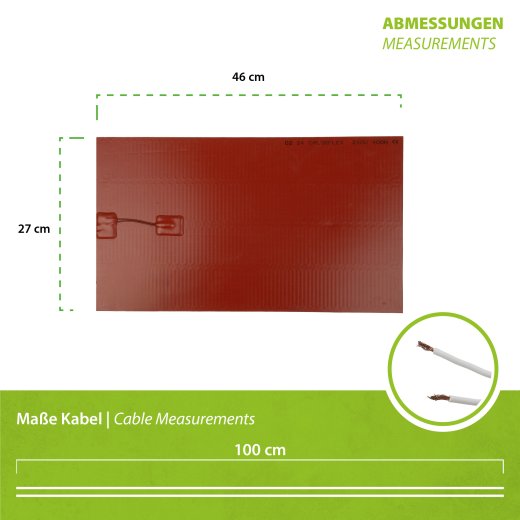

Dimensions: 46x27cm
Installation height: 0.8mm / max. 5.5mm at the temperature limiter
Minimum bending radius: 10mm
Operating temperature: -60°C to +200°C
IP protection class: IP68
Length of connection cable: approx. 100 cm
Plug: open cable end
Scope of delivery:
1x Mi-Heat silicone heating mat 46x27cm
1x operating instructions
Important notes:
The heat output of the silicone heating pads is very high in relation to the surface area. It is therefore crucial to ensure sufficient cooling or temperature control to avoid overheating and possible damage to the heating film. The specified surface temperatures refer to average values under specific conditions (ambient temperature of 20°C, 45% relative humidity, still air). The actual heating temperature can vary considerably depending on ambient conditions, substrate, thermal insulation, air flow, humidity, operating voltage and other factors.
