WarmUp StickyMat thin-bed heating mat SPM 200Watt/m² for tiles and natural stone floors
The WarmUp StickyMat offers an outstanding solution for new builds and existing properties to ensure fast and even floor heating. This heating solution is not only easy to install, but also extremely versatile. It is perfect for various floor coverings such as tiles, granite and natural stone. Its low profile means it can be seamlessly integrated into thin tile adhesive, making it ideal for any type of space, whether it's new build or older buildings.
The mat consists of a heating conductor only 1.8 mm thick, which is double insulated and has a robust fluoropolymer coating. This heating conductor is attached to a self-adhesive fiberglass fabric at intervals of around 8 cm. This allows the mat to be simply rolled out over the floor and repositioned as required without losing its adhesion.
The thin-bed heating mat can be used under all ceramic and natural stone floors that are compatible with underfloor heating systems. When laying the electric heating mats, they can simply be covered with a filler to create a flat floor surface. This allows for a simple and efficient installation that blends seamlessly into the existing floor structure.
In summary, the WarmUp StickyMat offers a flexible and efficient solution for floor heating in various applications and environments that is not only user-friendly, but also promotes a healthy and comfortable indoor climate.
Note: Underfloor heating is the perfect solution for old buildings that have not undergone energy modernization or for new buildings and residential buildings where rapid heating is required.
Installation: Lay the heating mat directly in the leveling compound or in flexible adhesive for tiles. The tile can then be laid with tile adhesive
Heating mat properties:
- Dual fluoropolymer-coated twin heating conductor (temperature resistance in the range from -200 to approx. 260 °C)
- Robust self-adhesive glass fiber fabric for extra durability and strong hold -Confirmed quality (BEAB test mark, international certification)
- Ultrathin 1.8 millimeter thick twin heating conductor
- Fast and easy installation
- Optimal solution for rooms with limited installation height
- Less electromagnetic radiation - thanks to twin Technology
- Small heat-up time
- Homogeneous heat distribution
Installation Methods:
- directly in tile adhesive
- self-levelling compound
- in stucco/mortar
- anhydrite floors
Technical data heating mat:
Operating voltage: 230VAC
Max. Powerconsumption: 200Watt/m²
Max. operating temperature: 80°C
Operating temperature: 80°C
Min. operating temperature: -10°C
Heating mat width: 50cm
Protection class: IPX7
Cable diameter: 1.8mm
Loop spacing: 8.0cm
Connection cable length: 3.0m
Protective measure: RCD circuit breaker 30mA
Approval: BEAB
Features Thermostat Element WiFi
Quick, easy and safe Installation
Stylish and modern design
App and web control (Warmup App / MyWarmup Portal)
SmartGeo function
Self-learning mode
Touch Display
Programmable
Highest Quality
Languages: German, English, French, Spanish, Portuguese, Dutch, Swedish, Italian
Technical data Thermostat Element WiFi
Installation type: Flush-mounted
Version: Wired Operating
voltage: 230 V
Max. Switching capacity: 16A / 3680 Watt
Control type: Adaptive Control
Operating temperature: 0-40°C
Sensor: Internal & External
Temperature control range (Internal): 5-45°C (room sensor)
Temperature setting(External): 5-45°C (floor sensor)
Frost protection: yes, 5-10°C Floor
limit range: 28-40°C
Display/lighting: yes / yes
IP protection class: IP33
Size(HxWxD): 86 x 86 x 16mm (from wall)

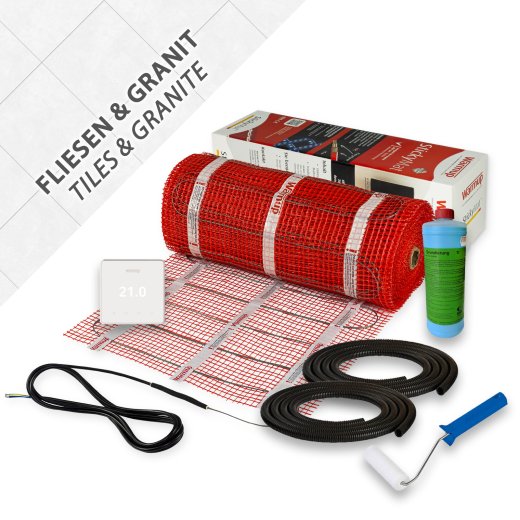

Scope of delivery:
1x Thermostat Element WiFi white
1x Operating instructions for Thermostat
1x Heating mat 5,0m²
2x Corrugated pipe
1x Installation instructions
1x Paint roller
1x Primer
Note: The WarmUp StickyMat heating mats must be operated with a temperature controller that is equipped with a temperature limit of +30°C. The heating conductor of the heating mat must not be shortened or cut.
