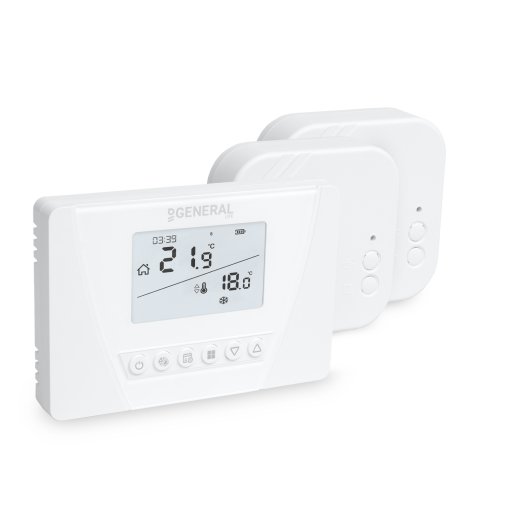

Wireless Thermostat Set Mi-300S RF
The Mi-300S RF wireless thermostat set is an optimal solution for heating control when no cable is available. The set consists of a battery-operated transmitter (2x AAA batteries) and a mains-voltage supplied receiver (230V / 50Hz). Transmission between the two devices is wireless via a 433MHz radio connection with a range of up to 20 metres. The radio room thermostat set is equally suitable for new buildings or renovations and can be easily removed again if required.
The control is designed for comfortable and economical heating operation and can control centrally the boiler, electric heaters, water-guided underfloor heating with NC or NO actuators, as well as other consumers with a maximum switching capacity of 7A (amps). Almost all consumers can be switched via the potential-free switching contact. The temperature is monitored via the integrated sensor on the wireless transmitter.
A total of up to 3 wireless receivers can be taught-in at the room thermostat transmitter. This means that even larger rooms with several heating sources can be controlled very conveniently. The battery-operated transmitter can either be surface-mounted on the wall or positioned at the desired location using a table stand.
A daily and weekly programming with 4 switching times allows a demand-oriented control of the consumer. In addition to various mode options (Comfort, Eco, Holiday), switching between heating and cooling mode is also possible. For example, air conditioners and fans can also be controlled via the Mi-300S RF wireless room thermostat set.
Properties
- Wireless connection with 433MHz, up to 20m radio range
- Daily and weekly programming with 4 switching times
- Different mode options (Comfort, Eco, Holiday)
- calibration of the temperature sensor
- Switching between heating and cooling mode possible
- Mounting either surface-mounted on the wall or in a table-top stand
- Expandable to up to 3 receivers
Technical data
Transmitter (thermostat)
Type of installation: surface-mounted / table stand
Version: wireless, battery-operated
Frequency: 433 MHz
Operating voltage: 2 x AAA batteries
Sensor: Internal
Temperature control range: 5-30°C
Floor limiting range: -
Display/illumination: Yes/Yes
Switching hysteresis: +/-2°C, adjustable in 0.5°C steps
Frost protection: Yes, 5°C
IP protection class: IP21
Dimensions (WxHxD): 125x85x20mm
Receiver
Mounting type: Surface-mounted
Design: Cable-connected
Operating voltage: 230V AC 50Hz
Max. Switching capacity: 7A
Frequency: 433 MHz
Dimensions (WxHxD): 90x90x25mm
Scope of delivery
1x Mi-300S RF thermostat set (1x Transmitter & 2 Receivers)
1x table stand
1x mounting material
1x operating instructions
