24Mi-Heat transformer 1200-2000 Watt
The 24V safety transformer serves as a voltage source for Mi-Heat carbon heating foils or other consumers with an operating voltage of 36V.
The output power of the transformer is made up of several individual channels, each with an output of 500W.
The transformer has extensive protective devices: For example, there are fine or flat plug fuses on the primary and secondary side and a 105°C temperature switch in the toroidal core, which protects the transformer from overheating. The transformer is also equipped with an inrush current limiter.
The transformer can be switched either via 230V mains voltage or via a potential-free switching contact. A corresponding circuit diagram can be found in the product illustrations and the enclosed operating instructions.

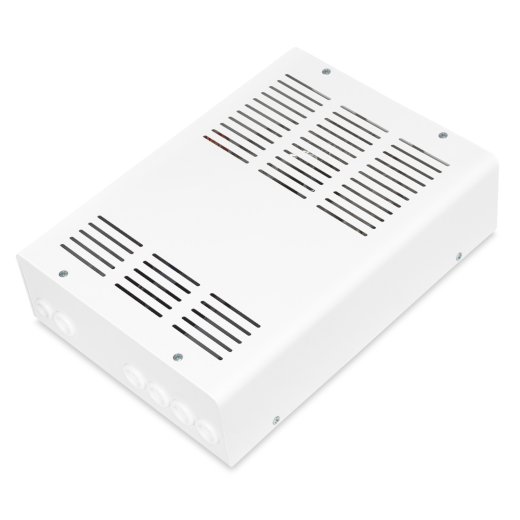

The transformer is designed for fixed mounting on the wall or horizontally. The high-quality metal housing has numerous ventilation slots, which ensure adequate ventilation and provide protection to IP20. The transformers are manufactured in the EU.
Note: The transformer should be selected so that approx. 10% of the output load remains as a reserve.
Features
- Toroidal safety transformer
- Primary and secondary fuses, interchangeable
- Short-circuit protection
- Overheating protection at 105°C
- Inrush current limiter
- Metal housing with ventilation holes
- Can be wall-mounted or flush-mounted
Technical data
Model: EP-1000-24-2.FC / EP-2000-24-4.FC
Power: 1200W (4x 300W) / 2000W (4x 500W)
Input voltage: 230V / 50Hz
Input current: 4.35A / 8.7A
Output voltage: 24V~
Output current: 12.5A (4x) / 20.9A (4x)
Operating temperature range: +5 to +35°C
Protection class: IP20
Protection class: 1
Dimensions (LxWxH): 325x235x88mm
Weight: 10.1kg / 13.2kg
Scope of delivery
1x transformer with selected power
