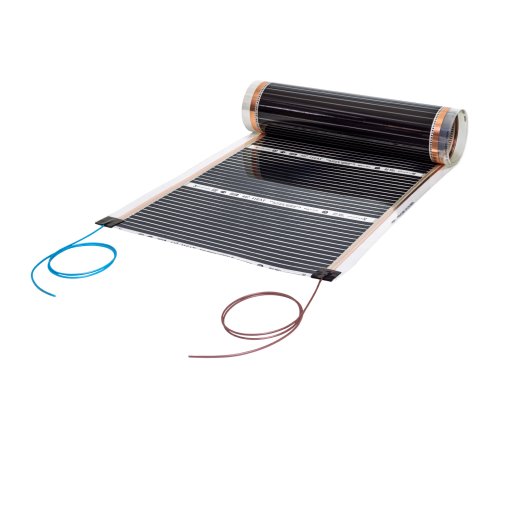

Comfort heating film 160watt/m² 50cm width completely assembled 2,5m=1,25m²

Comfort heating film 160watt/m² 50cm width completely assembled 2,5m=1,25m²

Length

€ 36,10

incl. 19% VAT , plus

Additional payment methods available in the shopping basket:

Available
Delivery time: 2 - 3 days ** (DE - int. shipments may differ)

SKU: 224-004
Manufacturers: Mi-Heat

Surface heating for electric underfloor heating

Heating foil, also known as carbon heating foil, is the thinnest version of electric underfloor heating. It consists of two copper strips that supply an electrically conductive coating on a carrier material. Almost the entire surface within the heating foil heats up evenly and thus ensures pleasantly warm floors over the entire installed area.
Compared to other electrical heating systems, the energy used is converted into infrared rays with almost no loss, which is what makes the infrared heating foil so efficient.
The electric underfloor heating can be applied to the existing floor subfloor without any major construction work.
The infrared heating foil is well suited for cold floors and where a higher temperature is desired. It can be installed in the living room, bedroom, in front of the sofa or under the dining table.

Properties

low installation height and weight, space-saving
consistent surface temperature
flexible, robust and reliable
homogeneous energy Distribution
low investment costs
short warm-up time
simple installation
maintenance-free
long life

Technical data
Operating voltage: 220-240 volts
Max. power consumption: 160 Watt/m² +/-10%
Heating surface per m²: 74
Path width: 50cm
Active area: 46cm
IR wavelength: 7-14 microns
Temperature resistance: up to 80°C
Efficiency: 98
Max. Web length: 12 metres in one piece
Can be shortened: Yes, every 25cm
Material thickness: 0.366 mm
Insulation: 2-layer, 1-fold insulation

Scope of delivery
1x 2.5m heating foil with 2.5m connection cable
1x assembly instruction

Note!
When using electric underfloor heating, a thermostat that allows an adjustable temperature limit of 26°C must be used for control.
When using electric heating elements, ensure that the surface covering has the appropriate thermal conductivity.
A manufacturer's approval must be obtained in advance by the customer.
The installation of electrical heating systems may and must only be carried out by a specialist in accordance with VDE DIN 100.
Heating foil capacity and its use:
Vinyl = 80 watts/m²
Laminate/parquet = 80 - 130 Watt/m²
Wall/ceiling and individual projects = 160 - 220 watt/m²
