Highly efficient and robust - superlative heating film
The Mi-Heat HighEnd Carbon heating film stands out from many other "standard" films on offer due to its full-surface heating element and very robust multi-layer construction, making it the highest quality product in our heating film range.
The heating film consists of two copper bands, which are supplied with a special nano-coating via a silver net applied to the carrier material. Between the two supply tapes, a full-surface electrical resistance is created that heats the special carbon heating element to its optimal temperature. For the highest possible protection, the heating element is enclosed by several PET and urethane layers, which makes this film extremely resistant.
Compared to many other heating films, which usually have recurring small interruptions in the carbon view, this heating film heats the entire surface between the supply bands continuously. The additional increased heat emission surface makes this heating film particularly efficient and ensures an evenly and pleasantly warm floor over the laid surface. The generated and harmless infrared radiation directly heats the objects above (usually the floor covering), whereby no air turbulence occurs.
The HighEnd heating film can be installed quickly and with low investment costs as an additional or main heating system. It is not only ideal for retrofitting, but also for use in new buildings and can provide a pleasant temperature control of the floor in almost any room (excluding damp rooms).
Advantages of the Mi-Heat HighEnd heating films
-
Nanotube technology: In contrast to the many standard heating films offered with "self-regulating" and so-called PTC technology, the high-end heating film uses carbon nanotube technology. This technology enables an additional gain in efficiency and also increases operational safety and resilience.
-
Multi-layer insulation: The Mi-Heat high-end heating films consist of 7 layers and 5 main components. The production of these components from carefully selected raw materials, their treatment in a heat chamber, as well as the high-quality lamination of the layers are indispensable prerequisites for the manufacture of this robust end product. The quality of the raw materials and the even application of the full-surface nano-technology also play an important role in achieving maximum efficiency. The heating film meets all the necessary European requirements and Standards.
-
More heating surface: Thanks to the fully utilised film surface and the comparatively narrow film edge area, the high-end films have an active heating surface of 96%. This, in combination with the nanotube technology, enables a uniform surface temperature and a fast heating Speed.
Application examples
- Full-fledged heating source in floor, wall and ceiling areas.
- As floor temperature control for frequently used areas such as. Sofa, workplace, etc.
- In industry to heat surfaces
Advantages compared to striped infrared heating foils:
- Full carbon surface, which leads to even heating of the surface
- Allows the sheets to be shortened at any point (complete electrical insulation of the cutting edge is required)
- Damage to the carbon surface does not lead to failure of a heating area
- Extremely resistant thanks to 3-fold insulation (6 protective layers)
- Can be laid under concrete and screed
Specifications:
Operating voltage: 220-240 volts
Max. Power consumption: 120 Watt/m² +/-10%.
Heating surface per m²: 96
Path width: 50cm
Active area: 46,5cm
IR wavelength: 7-14 microns
Temperature resistant: up to 100°C
Efficiency: 98
Max. Web length: 7 metres in one piece
Can be shortened: Yes, as required
Material thickness: 0.6mm
Insulation: 7-layer, 3-fold insulation
Scope of delivery:

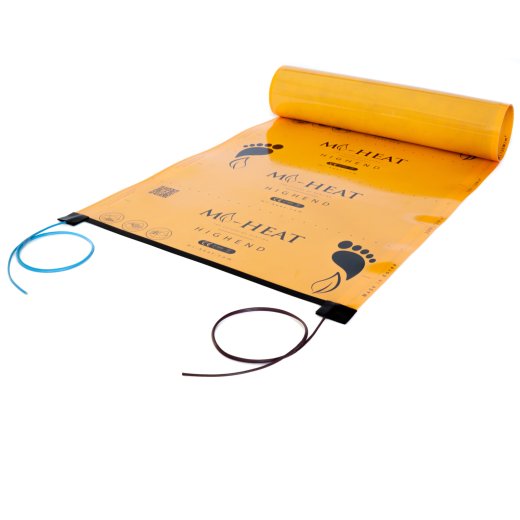

4,5m heating foil with 2,5m connection cable fully assembled
Note!
When using electric floor heating, a thermostat which allows an adjustable temperature limit of 26°C must be used for control.
When using electric heating elements, make sure that the floor covering has an appropriate thermal conductivity.
The customer must obtain a manufacturer's approval in advance.
The installation of electric heating systems may and must be carried out exclusively by a qualified person according to VDE DIN 100.
Heating foil capacity and its use:
Vinyl = 60-80 watt/m²
Laminate / parquet = 60 - 130 Watt/m²
Wall/ceiling and individual projects = 160 - 220 Watt/m²
