Complete set heating foil fleece-laminated for tiles and glued floor coverings 6.5m

Complete set heating foil fleece-laminated for tiles and glued floor coverings 6.5m

SKU: 1592-012
Manufacturers: Mi-Heat

Length

€ 899,90

incl. 19% VAT ,

Available immediately
Delivery time: 2 - 3 days ** (DE - int. shipments may differ)

Electric underfloor heating for tiles and bondable floor coverings*

The perforated Mi-Heat heating foil is one of the thinnest versions of electric heating systems and is designed for use as floor, wall or ceiling heating. The heating foil consists of two copper strips that supply an electrically conductive coating on a carrier material. The heating foil can be supplied with 24 volts direct current or alternating current. This also makes it possible to use it in damp rooms, for example in a shower that can be walked on at ground level.

The special feature of this heating foil is the fleece lamination and even perforation (perforation), which enables easy processing, e.g. in plaster, tile adhesive or by means of floor covering adhesive. This means that the heater can be installed universally under tiles, granite, porcelain stoneware or directly in the wall plaster. Installation under bondable floor coverings such as vinyl, parquet or herringbone laminate is also possible.

Almost the entire surface within the heating foil heats up evenly and thus ensures homogeneous heat distribution. Compared to other electrical heating systems, the energy used is converted into heat without much loss, which makes the infrared heating foil very efficient. The generated and harmless infrared radiation directly heats the objects above (e.g. the floor covering), whereby no air turbulence occurs.

*Note: The set offered here includes heating foil, which is supplied in one piece (rolls) and has to be assembled on site by the customer.

Properties heating foil:

Perforated and fleece-laminated - facilitates application
Low installation height
Easy, fast and safe Installation
Uniform surface temperature
Homogeneous heat Distribution
Flexible, robust and reliable
Made in Germany

Technical data heating foil:

Operating voltage: 24 volts
Max. Power consumption: 150 Watt/m² +/-10%
Heating surface per m²: 82
Web width: 60cm
Active area: 55cm
IR wavelength: 7-14 microns
Temperature resistance: up to 100°C
Efficiency: 98
Max. Web length: 4 metres in one piece
Can be shortened: Yes, as required
Material thickness: 0.4mm
Insulation: 4-layer, 1-fold insulation

Thermostat features:

high-resolution and illuminated touch Display
free Tuya Smart App (iOS and Android)
Weekly programme with three heating periods per day
window open detection and frost protection function
Compatible with switch series with an internal dimension of 55x55mm

Technical data thermostat:

Mounting type: flush-mounted
Operating voltage: 230 volts
Max. Switching capacity: 16A / 3680 Watt
Control mode: adaptive control
Operating temperature: 5-50°C
Sensor: Internal & external
Temperature control range (internal / room sensor): 5-40°C
Temperature control range (external / floor sensor): 5-40°C
Compatible NTC sensors: 12kOhm at 25°C
Frost protection: Yes, 7°C
Floor limitation range: 28°C
IP protection class: IP21
Display/illumination: Yes/Yes
Dimensions (WxHxD): 86x86x45mm

Technical data transformer:

Type: safety transformer
Mounting type: Surface-mounted
Input voltage: 230 volts
Output voltage: 24 volts AC (alternating voltage)
Max. Output power: 800 watts
IP protection class: IP20
Dimensions (WxHxD): 146x272x138 mm
Weight: 10,3kg

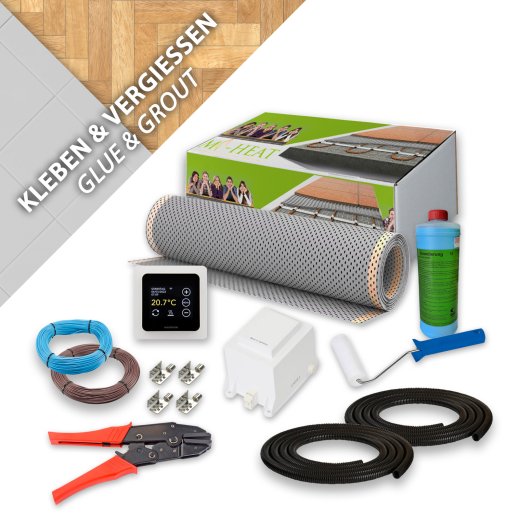

Scope of delivery:

6.5m perforated 24V heating foil 150W/m², 60cm wide, in selected length
1x 24V (AC) transformer 800W
1x Magnum MRC WiFi thermostat incl. floor sensor
2x corrugated tube
1x crimping tool
4x connection set (a connection set consists of 2x crimp connector and 2x 2.5m connection cable)
1x Adhesive and protective primer 1L
1x paint roller

Note!
When using electric underfloor heating, a thermostat that allows an adjustable temperature limit of 28°C must be used for control.
When using electric heating elements, ensure that the surface covering has the appropriate thermal conductivity. A manufacturer's approval must be obtained in advance by the customer.
The installation of electric heating systems may and must only be carried out by a specialist in accordance with VDE DIN 100.
