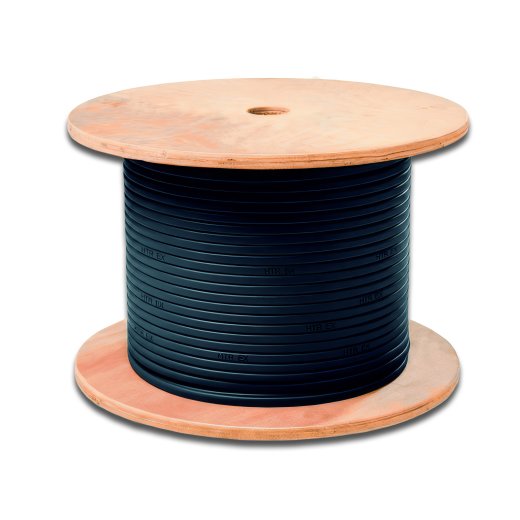

Outdoor PTC heating cable 30W/m - Cut to size by the metre
Our self-regulating heating cable offers an ideal solution for frost protection and heating pipes, gutters and many other applications. It can be ordered individually by the metre and adapts perfectly to your needs.
Thanks to its self-limiting PTC technology, the cable automatically adapts to the ambient temperature: As the temperature rises, the heating output decreases, while it increases as the temperature falls. This makes the heating cable particularly energy-saving and efficient. Another advantage is that the cable can also be laid overlapping without being damaged, making it easy to install even in complex shapes and objects.
The possible applications of the heating cable are extremely diverse. It is ideal as pipe trace heating and gutter heating to effectively prevent frost damage and ice formation. In gutters and downpipes, it ensures the unimpeded drainage of melt water, preventing damage caused by falling ice or snow. It is also perfect for frost protection of water pipes, liquid containers, gutters of driveway ramps and animal drinking troughs. It even provides reliable service as a defrost heater for air conditioning condensate pipes or to protect plants, flower pots and garden ponds.
Thanks to its robust construction and UV resistance, the heating cable is suitable for long-term outdoor use. With additional polyolefine insulation, it offers reliable frost protection down to temperatures of -40°C. Whether for private households or commercial installations - this heating cable ensures safety and protection against cold damage. It is flexible in use, easy to install and offers a long-lasting solution for various Areas.
Features
- energy-saving thanks to PTC Technology
- protects against icy temperatures down to -40°C
- can be mounted overlapping
- extremely robust and UV-resistant
- metal sheathing made from braiding and foil
- metre-long material to assemble yourself
- Quantity from the shopping basket is delivered as one piece
Application examples for frost protection cables
- Water and supply lines
- Liquid containers / rain barrels
- drainage channels of driveway ramps
- Pet troughs/horse troughs
- Rain gutters and downpipes
- Plants and flower pots
- Garden ponds
Technical data
Operating voltage: 230V
Heat conductor type: PTC twin heating cable
Max. Power consumption: 30W/m @10°C
Max. Operating temperature: 65°C
Min. operating temperature: -45°C
Min. bending radius: 25mm
Diameter: Flat heating cable, 10x5mm
Max. Cable length: 84m
Protection class: I
IP protection class: IPX7, provided our cable connection kit is fitted correctly
Plug: Optional, see accessories
Standards: Complies with IEC 60800, IEC/EN 62395-1, VDE 0721-52
Approvals: SGS Fimko, EAC
Scope of delivery
1 x frost protection heating cable (without connection material)
1 x operating instructions
Notes:
To place an order, please add the desired quantity of heating cable to the shopping basket, this will then be delivered as the total length of the heating cable.
Example: 30 pieces of heating cable in the shopping basket corresponds to a delivery of 30 metres of heating cable in one piece.
The self-regulating heating cable is not immediately ready for connection! A cable connection set and possibly a connection cable with a Schuko plug are required for the electrical connection. All products for the correct electrical connection can be found below in the accessories.
