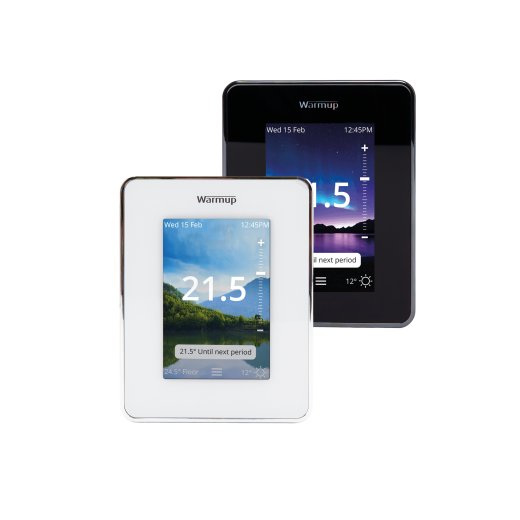

Warmup 7iE Smart Matter Thermostat
The Warmup 7iE Smart Matter Wi-Fi Thermostat is the logical evolution of the popular 6iE and combines modern sensor technology with maximum smart home flexibility. The thermostat is aimed at users who want to control their heating system in a particularly convenient, efficient and future-proof way. Thanks to the new Matter support, the 7iE room thermostat can be seamlessly integrated into many popular smart home platforms, including Apple Home, Google Home, Amazon Alexa and other Matter-enabled systems. This creates a consistent, cross-platform user experience that makes future expansions effortless.
The device is particularly versatile in its possible applications: The 7iE room controller is suitable for electric underfloor heating, infrared heating and water-based heating systems with 230 V NC actuators. This makes it ideal for new builds, renovations and hybrid heating concepts. The intelligent control system ensures precise temperature control, optimum energy efficiency and comfortable heat distribution at all times – exactly as required.
A major advantage of the 7iE is the option to connect a second external temperature sensor. This allows the thermostat to be installed outside the room where the heat source is located – for example, in the hallway, utility room or technical area. The temperature sensor reliably measures the room temperature in the actual room, while the thermostat itself can be installed in a protected or visually inconspicuous location. This significantly increases installation flexibility and enables particularly clean integration.
The high-quality, high-resolution touch display enables intuitive operation and displays all relevant information in a clearly structured manner. Functions such as SmartGeo or adaptive heating control analyse usage and heating behaviour and automatically adjust the heat output. This means that heating is only used when it is really necessary – which increases comfort and can significantly reduce energy consumption.
With its elegant design, the Warmup 7iE thermostat blends harmoniously into modern living and working spaces without being obtrusive. Whether at home, in the office, in a holiday home or in commercial premises, the thermostat combines high functionality with a contemporary look.
The Warmup 7iE room controller is therefore an efficient, smart and extremely flexible solution for anyone who wants to control their heating system in a future-proof way.
Features:
- Future-proof smart home integration thanks to Matter
- Suitable for electric underfloor heating, infrared heating and 230 V NC actuators
- Intuitive operation via high-resolution touch Display
- Energy optimisation through SmartGeo and adaptive heating Control
- Control via app, voice assistant or directly on the device
- Connection option for 2 external temperature sensors
- Compatible with many sensor types, NTC from 5 to 100 kOhm
(standard: NTC 10 kOhm)
Technical data:
Mounting type: Flush-mounted
Design: Wired
Operating voltage: 230 volts
Max. switching capacity: 16A / 3680 watts
Control type: Adaptive Control
Operating temperature: 0-40°C
Sensors: Internal & external
Temperature control range (internal): 5-45°C (room sensor)
Temperature setting (external): 5-45°C (floor sensor)
Frost protection: Yes, 7°C
Floor limitation range: 28-40°C
Compatible NTC sensors: 5, 10, 12, 15, 33, 100kOhm
Display/lighting: Yes with touch / Yes (colour display)
IP protection class: IP33
Dimensions (HxWxD): 115 x 90 x 39mm
Scope of delivery:
1x Warmup 7iE Smart Thermostat in black or white
1x Floor sensor 10kOhm
1x Operating instructions
