17/5 Black thin bed heating mats for electric floor heating.
The 17/5 Black heating mat is characterized by its unique product technology, which has a better heat distribution compared to other heating systems, with a round heating cable.
Thanks to the flat and wide heating cable, the heat emitting surface is five times larger. In addition, the small loop distance of approx. 5 to 6cm ensures uniform and fast heating of the floor covering. These core properties make this heating system particularly efficient.
The thin-bed heating system is ideal for renovation, as well as for new construction. It is characterized by its very low installation height and can be quickly laid on the existing screed.
The heating mat is laid out and can be laid either directly into the leveling compound or into flexible adhesive for tiles.
The multi-layer flat heating cable is fixed on a fiberglass mesh, which facilitates laying, provides stabilization and has a crack-bridging effect.
Other advantages of the multi-layer flat heating cable are a short heating-up time and homogeneous heat distribution. With conventional round heating cables, heat distribution is much more uneven, so that the individual seedlings may be subject to different temperatures. In addition, a few millimeters are saved in the installation height.
Features heating mat:
- Easy installation
- Low installation height
- Less electromagnetic radiation - thanks to Twin-Technology
- Homogeneous heat distribution
- Low heat-up time
- Polypropylene protective jacket
- Maintenance-free and long-lasting
Installation options:
Directly in tile adhesive
Self-leveling casting mortar
In mortar
Anhydrite floors
Technical data heating mat:
- operating voltage: 230V/AC
- max. power consumption: 150 Watt/m²
- max. operating temperature: 80°C
- min. operating temperature: -10°C
- heating mat width: 50cm
- heating cable width: 17mm flat cable
- loop distance: approx. 5-6cm
- length of connecting cable: 4,5m
- IP protection class: IPX7
- Protective measure: FI circuit breaker 30mA
Thermostat features:
- Wifi and Bluetooth Connection
- Programmable/operable via app (TuyaSmart).
- Compatible with Amazon Alexa, Google Assistant and IFTTT.
- Programmable via app up to 30 timers (switching times).
- Weekly program 6 switching times
- External sensor or room sensor
Technical data thermostat:
- Mounting type: flush-mounted
- Version: cable-connected
- operating voltage: 230 Volts
- Max. Switching capacity: 16A / 3680 Watt
- operating temperature: 5-50°C
- Sensor: Internal & External
- temperature control range (internal / room sensor): 5-45°C
- temperature control range (external / floor sensor): 5-45°C
- Frost protection: Yes
- Floor limit range: 5-60°C
- IP protection class: IP20
- Display/Lighting: Yes/Yes
- Dimensions (WxHxD): 86x86x11,3/43,9mm
- Color: white

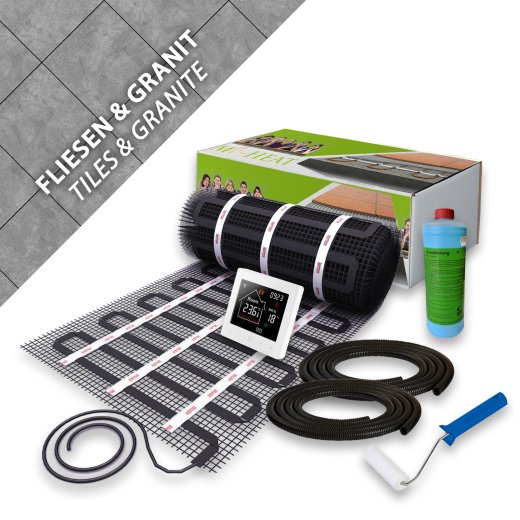

Scope of delivery:
1x 17/5 Black heating mat 2,0m²
1x Thermostat Mi-Heat M2 WiFi+Bluetooth incl. floor sensor
2x corrugated tube
1x adhesive primer
1x paint roller
1x instruction manual
Notice:
The 17/5 heating mats must be operated with a temperature controller, which is equipped with a temperature limit of +30°C.
