ATEX Connection Kit for Self-Regulating Ex Heating Cables HTP EX and HTS EX
The complete ATEX connection kit enables the professional connection and safe end termination of a self-regulating heating cable circuit in industrial and hazardous areas. The kit consists of coordinated components and combines the essential connection materials in one practical complete package.
Especially for our self-regulating Ex heating cables from the HTP EX and HTS EX series, the kit provides a convenient and practical solution, as the junction box, internal connection materials and end termination do not need to be selected separately.
All included components are designed for use in hazardous areas in accordance with ATEX. The Ex classification is Ex eb IIC T6…T3 Gb • Ex tb IIIC T85°C…200°C Db. This makes the connection system suitable for appropriately designed applications in both gas and dust hazardous areas.
The robust connection and junction box is made of durable polyester and has an IP66 protection rating. It is supplied with two M25 cable glands and one M25 blanking plug. The included connection materials allow the heating cable to be professionally prepared and electrically connected inside the junction box. At the opposite end of the heating circuit, the separate end termination provides a protected and ATEX-compliant termination of the self-regulating heating cable.
Features
- complete connection and end termination kit for self-regulating Ex heating cables
- ideal for use with our HTP EX and HTS EX heating cables
- ATEX and IECEx approved system components
- for industrial and hazardous areas
- suitable for appropriately designed gas and dust hazardous areas
(Gas: Ex eb IIC T6…T3 Gb, Dust: Ex tb IIIC T85°C…200°C Db)
- junction box with IP66 protection rating
including 2 x M25 cable gland and 1 x M25 blanking plug
- silicone connection kit for heating cable termination
- end termination with IP66 protection rating
- Approvals: ATEX, IECEx
Technical Data – Junction Box:
Dimensions: 122 x 122 x 67 mm
Material: Polyester
Protection rating: IP66
Cable entries: 2 x M25 cable gland
Blanking: 1 x M25 blanking plug
Weight: approx. 1,094 g
Ex classification: Ex eb IIC T6…T3 Gb • Ex tb IIIC T85°C…200°C Db
Technical Data – Connection Kit
Dimensions: 135 x 200 x 10 mm
Material: Silicone
Weight: approx. 30 g
Ex classification: Ex eb IIC T6…T3 Gb • Ex tb IIIC T85°C…200°C Db
Technical Data – End Termination
Dimensions: 60 x 51 x 22 mm
Protection rating: IP66
Max. current: 40 A
Weight: approx. 72 g
Ex classification: Ex eb IIC T6…T3 Gb • Ex tb IIIC T85°C…200°C Db
Scope of Delivery

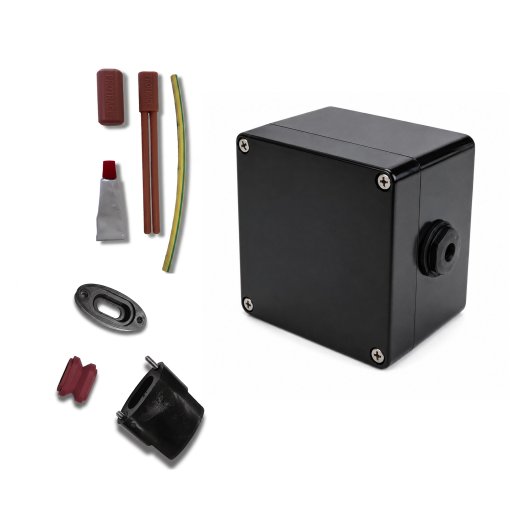

1 x Heatcom SELF-BOX ATEX connection and junction box
2 x M25 cable gland
1 x M25 blanking plug
1 x Heatcom CONNECTION KIT
1 x Heatcom SELF-END ATEX end termination
Notes
The connection kit is intended for creating a heating circuit connection with the corresponding end termination. The self-regulating heating cable and any thermostat or temperature sensor that may be required are not included in the scope of delivery.
For installations in hazardous areas, the suitability of the components for the relevant Ex zone, gas or dust group, temperature class and the complete installation must be verified before installation. The ATEX approval of individual components does not replace the professional planning and assessment of the complete heating system.
Preparation, electrical connection and installation in hazardous areas may only be carried out by appropriately qualified professionals in compliance with the applicable regulations and the manufacturer's documentation.
