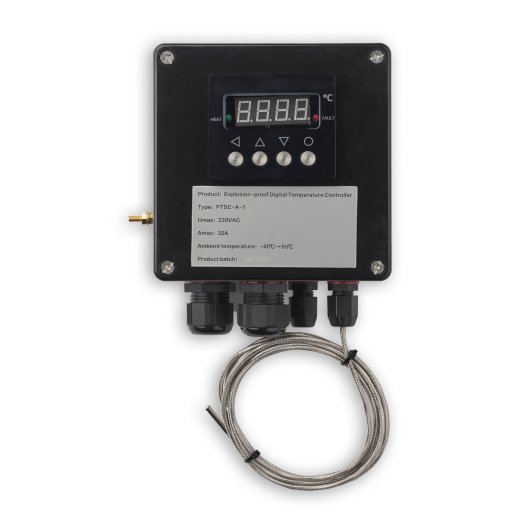

Heatcom PTDC Ex Thermostat IECEx Certified -60 to +200 °C
The Heatcom PTDC is a powerful explosion-proof electronic thermostat designed for precise temperature control in industrial applications and hazardous areas. With an exceptionally wide adjustment range of -60 to +200 °C, the controller is suitable for a wide variety of applications in electrical heat tracing, plant engineering and industrial temperature control.
The thermostat can be mounted either on a wall or directly on a pipe. The required stainless steel mounting brackets are already included in the scope of delivery and allow for a robust and practical installation even under demanding industrial operating conditions.
With a maximum current rating of 32 A at 240 V AC, the PTDC is also designed for higher-performance electrical heating systems. This makes it particularly suitable for controlling electrical heat tracing systems and self-regulating heating cables in industrial installations.
In addition to conventional temperature control, the PTDC features a Modbus RTU interface. This allows the thermostat to be integrated into higher-level control, automation or monitoring systems. An additional alarm output enables the signalling of corresponding operating or alarm conditions.
The robust enclosure has an IP66 protection rating and therefore provides a high level of protection against the ingress of dust and water. This makes the PTDC particularly suitable for industrial environments, piping systems, process plants and comparable applications with increased environmental requirements.
For use in hazardous areas, the Heatcom PTDC is IECEx certified. The Ex classification is Ex eb ib mb IIC T4 Gb…T3 Gb as well as Ex tb IIIC T135°C Db, covering applications in potentially explosive gas and dust atmospheres.
Features
- Electronic Ex thermostat for industrial applications
- IECEx certified for potentially explosive gas and dust atmospheres
- Wide adjustment range from -60 to +200 °C
- Maximum current rating of 32 A
- Operating voltage up to 240 V AC
- Modbus RTU interface for integration into control and monitoring systems
- Separate alarm output
- Suitable for wall or pipe mounting
- Stainless steel mounting brackets included
- Robust enclosure with IP66 protection rating
- Connection via two M25 and one M16 cable entries
- Ideal for electrical heat tracing and industrial heating systems
Typical Applications
The Heatcom PTDC is suitable for temperature control and monitoring of electrical heating systems in industrial and hazardous areas. Its wide temperature range and high switching capacity make the thermostat particularly suitable for heat tracing systems on pipes, tanks and technical installations.
The unit is particularly suitable for applications in:
- Potentially explosive gas and dust atmospheres
- Industrial pipe heat tracing systems
- Self-regulating heating cable systems
- Frost protection and temperature maintenance systems
- Industrial and process plants
- Plant and mechanical engineering
- Piping and technical supply systems
- Temperature control of tanks and system components
Technical Data
Manufacturer: Heatcom Corporation A/S
Series / Model: PTDC
Manufacturer part number: 40059009
Device type: electronic industrial thermostat
Function: temperature control
Adjustment range: -60 to +200 °C
Max. current: 32 A
Operating voltage: 240 V AC
Interface: Modbus RTU
Alarm output: available
Mounting type: wall or pipe mounting
Cable entries: 2x M25 and 1x M16
Dimensions: 160 x 185 x 90 mm
Protection rating: IP66
Weight: approx. 4.06 kg
Ex classification gas: Ex eb ib mb IIC T4 Gb…T3 Gb
Ex classification dust: Ex tb IIIC T135°C Db
Ex certification: IECEx
Scope of Delivery
1x Heatcom PTDC Thermostat
1x mounting kit with stainless steel brackets
Safety Notice
Connection, installation and commissioning may only be carried out by appropriately qualified personnel. When installing the device in hazardous areas, all applicable standards, regulations, approval conditions and explosion protection requirements must be strictly observed.
Before selecting and installing the thermostat, it must be verified that the IECEx classification, temperature class, environmental conditions and electrical ratings are suitable for the intended application. The manufacturer's specifications and the documentation applicable to the respective installation must be observed.
