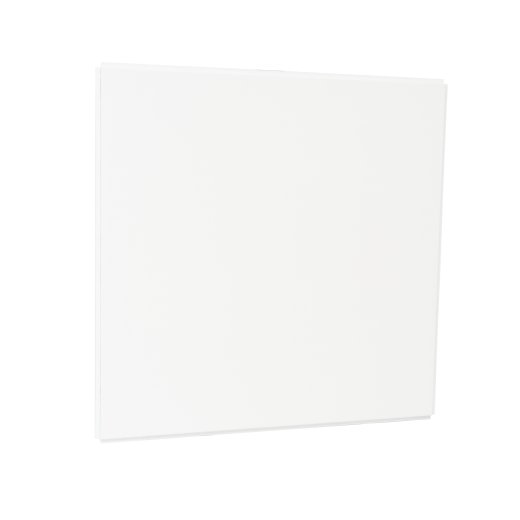

ECOSUN E 300 C 625/VT – 300 W infrared heater for Odenwald ceilings (600×600 mm)
Efficient. Unobtrusive. Precisely fitting. – The E 300 C 625/VT infrared heater was specially developed for flush installation in OWA (Odenwald) cassette ceilings with a grid dimension of 600 × 600 mm. It is the ideal solution for offices, sales rooms, waiting rooms, schools, or public facilities that require efficient and unobtrusive heating with soothing radiant heat.
With an output of 300 watts, the heating panel is ideal for rooms up to approx. 6 m² – for larger rooms, the required heating output can be easily achieved by adding several modules. This creates a flexible, modular heating concept that can be individually adapted to the size of the room and the heat requirement.
The surface is white, slightly textured, and powder-coated, which not only looks good but also increases the radiant surface area by 2.5 times—for particularly even heat distribution.
Thanks to the double thermal insulation on the back, the heat output is directed into the room—for maximum energy efficiency and noticeable comfort.
Product advantages at a glance:
- Tailor-made for 600×600 mm OWA grid ceilings
- Discreet ceiling installation – ideal for modern interiors
- Uniform heat distribution thanks to structured surface
- Lightweight, no ceiling reinforcement required
- Maintenance-free technology, durable and energy-saving
Technical specifications
Operating voltage: 220-240V, 50Hz
Max. power consumption: 300 watts
Size: 60 x 60 x 3 cm
Heated room size: up to 6m² per infrared ceiling heater
Installation: ceiling
Surface temperature: 85°C
Energy efficiency: up to 95%
Protection class: IP20
Weight: 4.6kg
Connection cable: terminal connection, without cable
Scope of delivery
1x ECOSUN E 300 C 625/VT heating Panel
1x Installation instructions
Note on EU Ecodesign Directive 2015/1188
This infrared heater may only be installed in conjunction with a thermostat that has electronic room temperature control, weekday programming, and adaptive control of the start of heating or open window detection.
