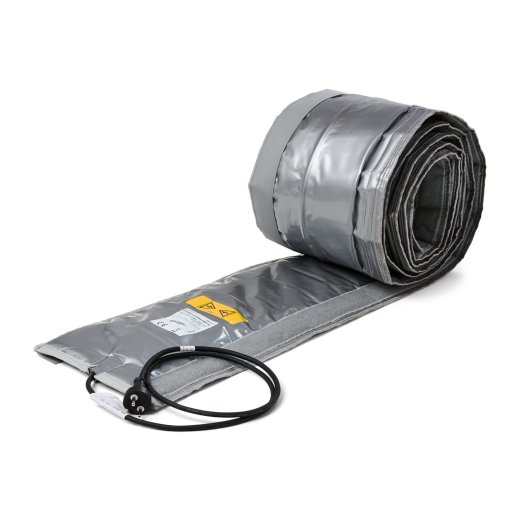

230 V Pipe Heating Jacket 17 W/m with Insulation for Frost Protection of Pipes and Lines
Our electric pipe heating jacket is a mobile and particularly easy-to-install solution for reliable frost protection of water pipes, wastewater pipes and other pipelines. It has been specially developed for temporary installations and demanding operating conditions and is particularly suitable for construction sites, mobile sanitary facilities, site containers and other areas where pipes need to be protected from freezing. Unlike permanently installed pipe trace heating systems, the frost protection jacket is simply wrapped around the pipe to be protected and closed using the integrated hook-and-loop fastener. This allows it to be installed quickly, removed just as easily and reused at another location. The integrated insulation reduces heat loss to the outside and supports targeted heat transfer to the pipe.
Inside the heating jacket is a self-regulating electric heating cable with a grounded aluminium shield. The heating system adjusts its heat output according to the temperature, thereby supporting reliable frost protection of the enclosed pipe. The combination of electric heating and integrated thermal insulation makes the jacket a particularly practical solution for temporary and changing locations. The pipe heating jacket is designed for pipe diameters of up to a maximum of 50 mm. If larger pipes, lines or components need to be heated, two or more heating jackets can be combined and connected using the existing hook-and-loop fasteners. This allows the system to be flexibly adapted to different pipe dimensions and applications.
With a minimum installation temperature of down to -30 °C, the frost protection jacket is also suitable for installation at very low outdoor temperatures. Especially on construction sites, this can help prevent frozen or frost-prone pipes and the associated interruptions to work. The heating jacket is available in various lengths from 5 to 25 metres. Depending on the selected version, the electrical connection is made either via a Schuko plug (Type F) or a three-pole IEC 60309 plug. This allows the appropriate connection type to be selected according to the available power supply at the place of use.
Thanks to its mobile plug-and-play design, the pipe heating system is particularly suitable for recurring or temporary frost protection measures. After use, the jacket can simply be opened, removed from the pipe, rolled up and transported in a space-saving manner or stored until the next use.
Typical applications
- Frost protection of water pipes
- Frost protection of wastewater and drainage pipes
- Temporary pipe heating on construction sites
- Water pipes in site containers and office containers
- Pipes for mobile sanitary and toilet facilities
- Temporary outdoor installations
- Frost protection at changing or mobile locations
Features
- Mobile 230 V pipe heating jacket for reliable frost protection
- Suitable for pipes with a diameter of up to 50 mm
- Integrated insulation reduces heat loss and supports targeted heating of the pipe
- Self-regulating heating system for temperature-dependent heat output
- Quick installation and removal thanks to the integrated hook-and-loop fastener
- Several heating jackets can be combined for larger pipe diameters
- Installation possible at ambient temperatures down to -30 °C
- Reusable and ideal for mobile and temporary applications
- Available with either a Schuko Type F plug or a three-pole IEC 60309 plug
Technical specifications
Operating voltage: 230 V / 50 Hz
Heating system: self-regulating heating cable
Heating cable output: 17 W/m at 10 °C
Power consumption depending on length: 85 to 425 W
Available lengths: 5 / 10 / 15 / 20 / 25 m
Maximum pipe diameter: 50 mm, several heating jackets can be combined
Connection cable: 1.5 m
Plug: Schuko Type F or IEC 60309, depending on selection
Protection rating: IP44
Outer material: robust, flame-retardant PVC/polyester fabric
Minimum installation temperature: -30 °C
Scope of delivery
1x pipe heating jacket in the selected length
1x installation manual
Note: The pipe heating jacket must be controlled using a suitable thermostat. This allows the heating to be regulated according to the temperature and supports energy-efficient and safe operation.
