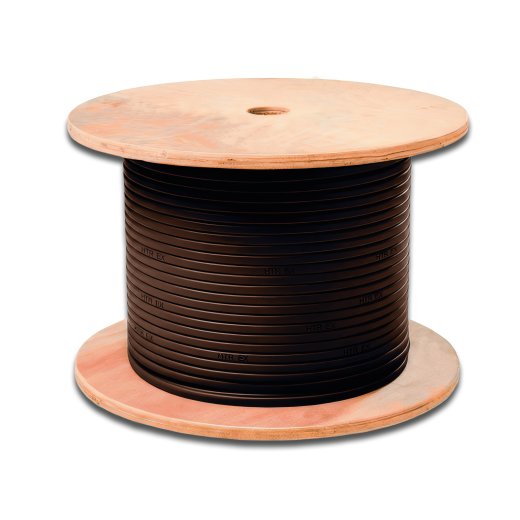

Self-Limiting Ex Heating Cable 31 W/m for Industrial Pipe Trace Heating
The HTP EX self-limiting heating cable has been developed for demanding pipe trace heating applications and use under challenging environmental conditions. Its suitability for appropriately designed explosion-protected applications is a key feature: the heating cable is approved according to ATEX and IECEx and is classified in ATEX temperature class T4.
This makes the HTP EX suitable for industrial applications where reliable heating and increased explosion protection requirements are essential. Its specific suitability for the relevant Ex zone and installation must be verified on the basis of the complete Ex marking, the system design and the required connection components.
The self-regulating heating matrix automatically adjusts the heat output to the ambient temperature. When the temperature drops, the heat output increases. As the temperature rises, the output is automatically reduced. This supports energy-efficient and reliable frost protection as well as dependable temperature maintenance on pipes.
With a nominal output of 31 W/m at 10 °C, the heating cable is suitable both for installation on the outside of pipes and for installation inside suitable pipe systems. The durable fluoropolymer outer jacket allows use under increased temperature and environmental requirements. The maximum permissible cable temperature is 110 °C when energized and 135 °C when de-energized.
For controlled and economical operation, regulation via a suitable thermostat with a temperature sensor matched to the application is recommended.
Features
- ATEX and IECEx approvals
- self-limiting, temperature-dependent heat output
- 31 W/m nominal output at 10 °C
- durable fluoropolymer insulation
- maximum cable temperature of 110 °C when energized
- installation possible at temperatures down to -40 °C
- sold by the metre for individual configuration
Application Examples for the Ex Heating Cable
- pipe trace heating in hazardous areas
- frost protection for industrial pipework
- temperature maintenance on process and supply lines
- heating of externally installed pipes
- heating inside suitable pipe systems
- industrial installations requiring ATEX or IECEx components
- pipes with increased temperature requirements
Technical Data
Operating voltage: 230 V
Heating cable type: self-limiting heating cable
Nominal output: 31 W/m at 10 °C
Output tolerance at 10 °C: -10 % to +20 %
Cable dimensions: 12.2 x 5.0 mm, tolerance ±0.5 mm
Conductor cross-section: 2 x 1.35 mm², tinned
Conductor insulation: fluoropolymer
Grounding: braided shield made of tinned copper
Outer jacket: fluoropolymer
Max. cable temperature when energized: 110 °C
Max. cable temperature when de-energized: 135 °C
Minimum installation temperature: -40 °C
Minimum bending radius: 30 mm over a broad surface
ATEX temperature class: T4
Approvals: IECEx and ATEX
Max. heating circuit length: up to 82 m on pipes
Max. heating circuit length inside pipes: up to 58 m
Scope of Delivery
1 x HTP EX self-limiting heating cable in the ordered length
Notes
To place an order, enter the required number of metres as the quantity in the shopping cart. The ordered quantity will be supplied as one corresponding continuous length of heating cable.
Example: An order quantity of 30 units corresponds to a delivery of 30 metres of heating cable in one continuous length.
The HTP EX heating cable is not supplied ready for connection. Suitable connection and end termination components, as well as a thermostat if required, are necessary for operation.
In hazardous areas, only project-specific approved ATEX system components may be used. Planning, connection and installation must be carried out by qualified professionals.
Suitability for the relevant Ex zone, gas or dust group, temperature class and installation must be fully verified before installation. When installed inside a pipe, compatibility with the pipe material, medium and operating conditions must also be ensured.
